플라즈마시스템

방산의 높은 품질 수준을 기반으로 다양한 산업현장에 적합한 플라즈마 솔루션을 제공합니다.

안정적인 설계 기술력과 고객별 맞춤 제어시스템으로 보다 발전된 플라즈마 시스템을 제안합니다.

•

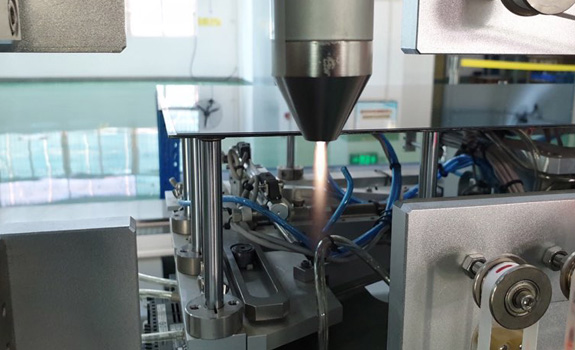

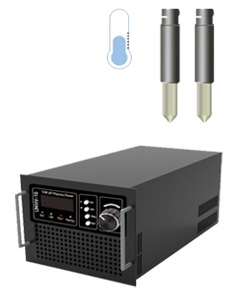

  대기압 JET 플라즈마 시스템

  • - 고온 / 저온 젯 시스템
  • - 국소적 면적 처리
  • - 후처리 공정 : 세정 및 표면 개질

  상세보기

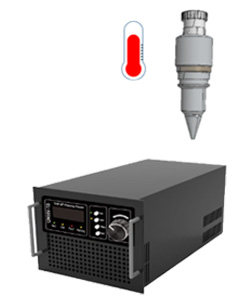

  UNI-DCPT-10(1kW)

  Specification

  • Air, N2 mass flow control
  • Two Electrode Control
  • Input : Single-Phase, 220VAC, 50~60Hz , Fuse 15A
  • Control mode : Power
  • Interface : RS-485 / 232 / Remote / Local / MFC / Discrete I/O
  • Power Length(mm) : 177(H) x 257(W) x 544(D)
  • Operation temp : +5℃ ~ 40℃
  • Relative humidity : 5% ~ 85%

  Plasma

  • Temp : 60℃ ± 10
  • Air : 20 ~ 50LPM
  • Power : 300 ~ 600W
  • Plasma Discharge Length : 15 ~ 20mm
  • Plasma Processing Width : 2 ~ 8mm

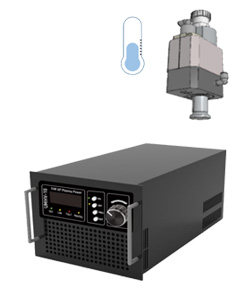

  UNI-CRPT-10(1kW)

  Specification

  • Air, N2 mass flow control
  • Input : Single-Phase, 220VAC, 50~60Hz , Fuse 15A
  • Control mode : Power
  • Interface : RS-485 / 232 / Remote / Local / MFC / Discrete I/O
  • Power Length(mm) : 177(H) x 257(W) x 544(D)
  • Operation temp : +5℃ ~ 40℃
  • Relative humidity : 5% ~ 85%

  Plasma

  • Air : 20 ~ 50LPM
  • Power : 400 ~ 600W
  • Plasma Processing Width : 50 ~ 60mm



  UNI-SCPT-05(500W)

  Specification

  • Air mass flow control
  • Input : Single-Phase, 220VAC, 50~60Hz , Fuse 10A
  • Control mode : Power
  • Interface : RS-485 / 232 / Remote / Local / MFC / Discrete I/O
  • Power Length(mm) : 177(H) x 257(W) x 544(D)
  • Operation temp : +5℃ ~ 40℃
  • Relative humidity : 5% ~ 85%

  Plasma

  • Temp : 60℃ ± 10
  • Air : 20 ~ 50LPM
  • Power : 200 ~ 300W
  • Plasma Discharge Length : 15 ~ 20mm
  • Plasma Processing Width : 2 ~ 8mm



  UNI-SPT-10(1kW)

  Specification

  • Air, N2 mass flow control
  • Input : Single-Phase, 220VAC, 50~60Hz , Fuse 15A
  • Control mode : Power
  • Interface : RS-485 / 232 / Remote / Local / MFC / Discrete I/O
  • Power Length(mm) : 177(H) x 257(W) x 544(D)
  • Operation temp : +5℃ ~ 40℃
  • Relative humidity : 5% ~ 85%

  Plasma

  • Air : 20 ~ 50LPM
  • Power : 300 ~ 600W
  • Plasma Discharge Length : 20 ~ 30mm
  • Plasma Processing Width : 10 ~ 20mm



  닫기

•

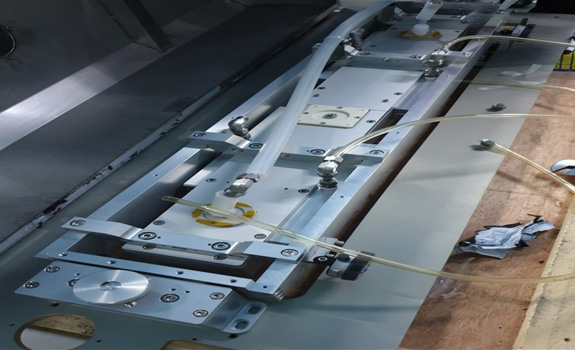

  대기압 DBD 플라즈마 시스템

  • - Size : 100~1500mm
  • - 대면적 처리
  • - 전처리 공정 : 세정 및 표면 개질

  상세보기

  AP DBD Plasma (Dielectric Barrier Discharge )

  Specification

  • Treatment Size : ~1,200mm
  • Process : Cleaning apparatus of organic materials (Dry cleaning)
  • Max moving speed : ~6,000mm/min

  • * Method of treatment effect test
    • - hydrophilicity : Before > 30° , After > 5°
    • - Moving speed : 4,000mm/min

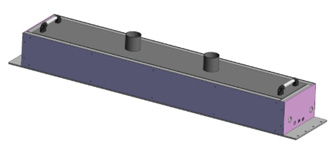

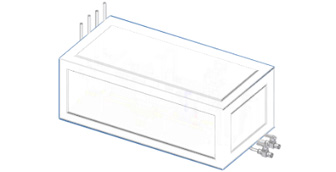

  Electrode Unit

  • Length(mm) : 1380(W) x 120(H) x 130(D)
  • Weight : 30Kg
  • Max treatment Area : 1200mm
  • Material : Aluminum Alloy, Aluminum oxide
  • Cooling method : Water Cooling



  Process Utility Gas Supply Unit

  • Gas : CDA, N2
  • Gas flow control : MFC
  • Max treatment Area : 1200mm
  • Interlock : Pressure Sensor, PCW Flow Switch
  • Gas Distribution Tank



  High Voltage Power Supply

  • Input : 3Ø AC 220V 50/60Hz
  • Output : ~10kV(Peak), option 15kV
  • Power : 10kW (for 1400mm Electrode)
  • Frequency : 20~60kHz
  • Cooling method : forced Air
  • Mode : Power / Voltage
  • Interface : RS-485, RS232, DIO
  • Length(mm) : 483(W) x 222(H) x 645(D)
  • Weight : 45kg



  닫기

•

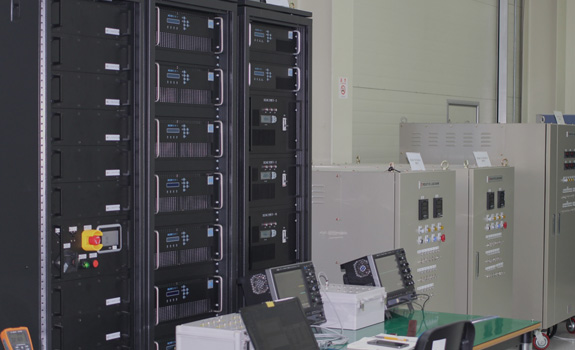

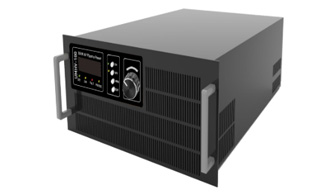

  플라즈마 전원공급기

  • - 출력 : 500W ~ 10KW
  • - 경량제품
  • - 폭 넓은 호환성
  • - 높은 신뢰성 - CE인증
  • - 사용자 편의 기능 제공

  상세보기

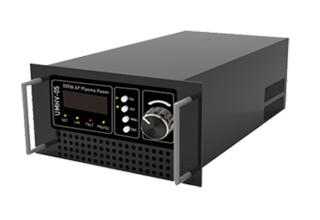

  UMHV-05

  Specification

  • Output power : 500W
  • Max. output Voltage : 10kV(Peak)
  • Adjustable frequency(20 ~ 60KHz)
  • Interface : RS-485 / 232 / Remote / Local / MFC
  • Air, N2 mass flow control
  • Length(mm) : 257(W) x 132(H) x 544(D)
  • Weight : 8.5kg
  • Operation temp : +5℃ ~ 40℃
  • Input : Single-Phase, 220VAC, 50~60Hz, < 3.5A (nominal), Fuse 10A

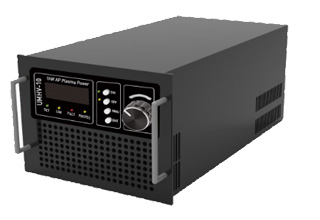

  UMHV-10

  Specification

  • Output power : 1kW
  • Max. output Voltage : 10kV(Peak)
  • Adjustable frequency(20 ~ 60KHz)
  • Interface : RS-485 / 232 / Remote / Local / MFC
  • Air, N2 mass flow control
  • Length(mm) : 257(W) x 177(H) x 544(D)
  • Weight : 9.5kg
  • Operation temp : +5℃ ~ 40℃
  • Input : Single-Phase, 220VAC, 50~60Hz, < 7.0A (nominal), Fuse 15A

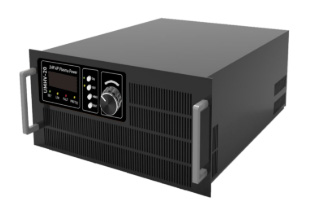

  UMHV-20

  Specification

  • Output power : 2kW
  • Max. output Voltage : 10kV(Peak)
  • Adjustable frequency(20 ~ 60KHz)
  • Interface : RS-485 / 232 / Remote / Local / MFC
  • Air, N2 mass flow control
  • Length(mm) : 483(W) x 175(H) x 590(D)
  • Weight : 28.0kg
  • Operation temp : +5℃ ~ 40℃
  • Input : Single-Phase, 220VAC, 50~60Hz, < 15.0A (nominal), C/P 30A

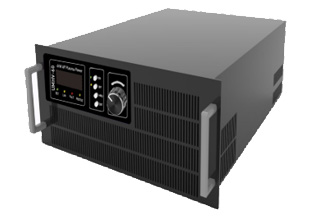

  UMHV-60

  Specification

  • Output power : 6kW
  • Max. output Voltage : 10kV(Peak) , 15kV(Optional)
  • Adjustable frequency(20 ~ 60KHz)
  • Interface : RS-485 / 232 / Remote / Local / MFC
  • Air, N2 mass flow control
  • Length(mm) : 483(W) x 177(H) x 645(D)
  • Weight : 32.0kg
  • Operation temp : +5℃ ~ 40℃
  • Input : Three-Phase, 220VAC, 50~60Hz, < 20.0A (nominal), C/P 30A

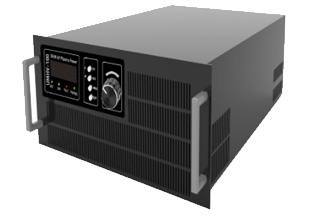

  UMHV-100

  Specification

  • Output power : 10kW
  • Max. output Voltage : 10kV(Peak) , 15kV(Optional)
  • Adjustable frequency(20 ~ 60KHz)
  • Interface : RS-485 / 232 / Remote / Local / MFC
  • Air, N2 mass flow control
  • Length(mm) : 483(W) x 222(H) x 645(D)
  • Weight : 45.0kg
  • Operation temp : +5℃ ~ 40℃
  • Input : Three-Phase, 220VAC, 50~60Hz, < 30.0A (nominal), C/P 40A



  닫기

•
  통합 제어 시스템

  • - 플라즈마 통합제어 프로그램
  • - 정밀제어 & 다양한 모니터링
  • - 선택적 옵션 적용

  상세보기

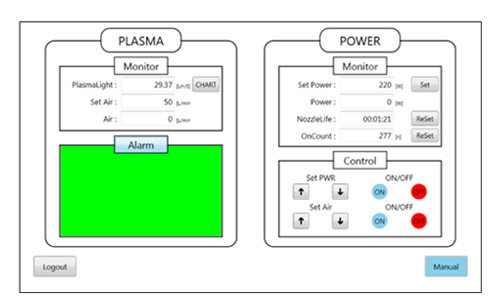

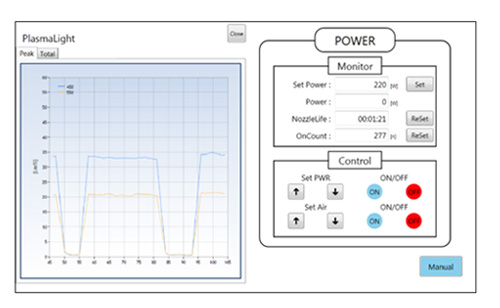

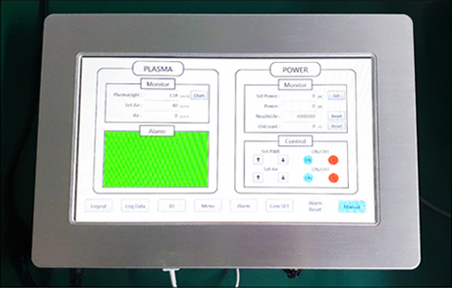

  Plasma system controller
  Plasma system components sequence control , monitoring and user interface , Uplink

  Specification

  • Plasma total control
  • Power supply setting , on/off control, monitoring
  • plasma/power/air alarm , protection
  • Permissions setting for user
  • Make Log files
  • Support OS : Windows7,10
  • Interface : RS-232 2CH, LAN
  • Air mass flow detail control (optional)
  • Plasma light monitoring (optional)





  닫기
